SS304 SS316 Flat Mesh Type Conveyor Belt Wire For Chocolate Biscuit Conveying

Ask Lasest Price
Brand Name :	xinlihua
Price :	5 - 19 Meters $12.21, 20 - 199 Meters $9.47, >=200 Meters $5.17
Payment Terms :	T/T
Supply Ability :	To be negotiated

Add to Cart

Product Details
Company Profile

SS304 SS316 Flat Mesh Type Conveyor Belt Wire For Chocolate Biscuit Conveying

Product Description

Flat flex stainless steel ladder conveyor mesh belts

Flat flex conveyor belts are usually gear transmission belt, with
good ventilation advantages, tension evenly, fine workmanship, the
flat flex belts with a flexible rotation, good stability, High
temperature, pressure resistance, corrosion resistance, long life
and so on.

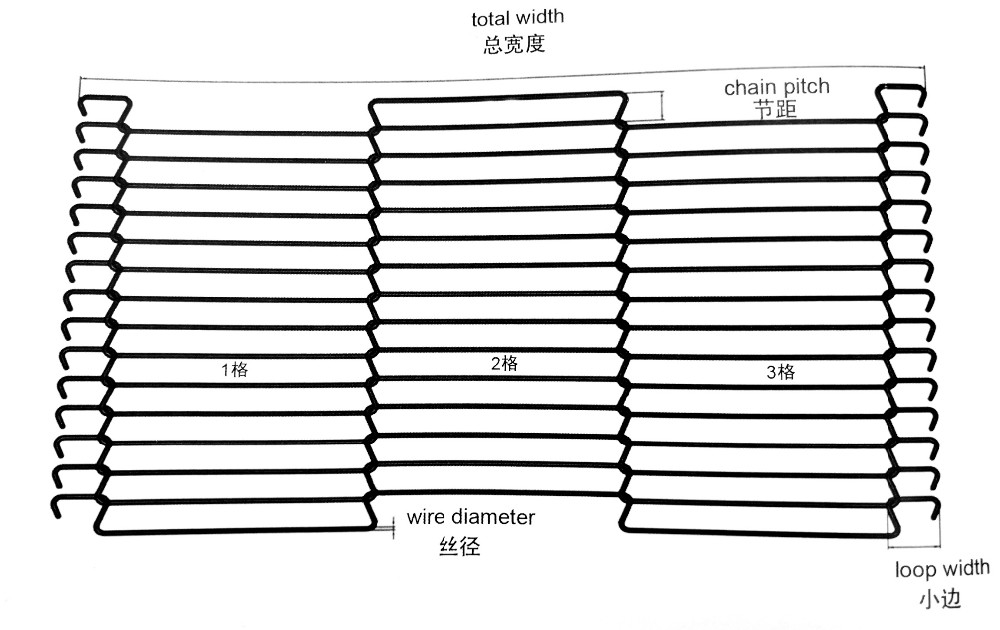

Stainless steel mesh belt Specification

1, Stainless steel mesh belt Material:
stainless steel 304,316, gavalnized iron
2, wire diameter:1-3mm
3, chain pitch:4-20mm
4, width:200-3800mm
5, other specifications can be provided according to your
requirements.

Detailed Images

HOW TO GET EXACT PRICE?

You would better advise us the conveyor belt specifications as below:
1, Spiral wire and Rod wire
2, Spiral pitch and Rod pitch
3, The overall length and width
If you don't have the exact data, please advise us your application, we can recommend you the best suitable ptoduct.

Sincerely look forward to your inquiry!

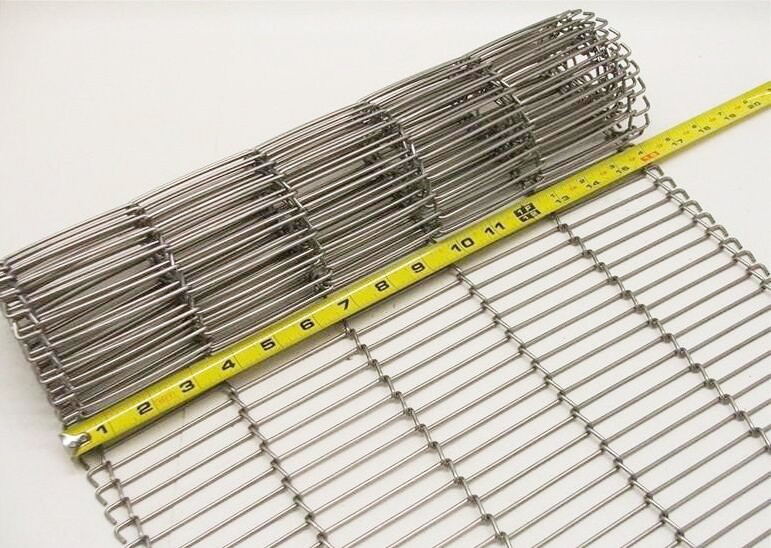

Flat flex conveyor belt with single loop edge

Flat flex conveyor belt mesh

Conveyor belt chain links driven type

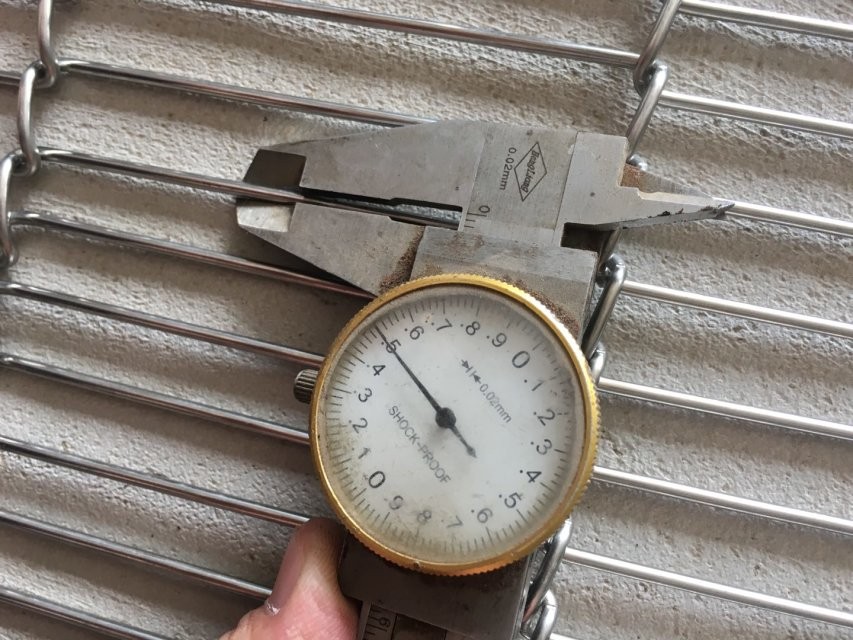

strict quanlity control

Application

Stainless steel conveyor mesh belt Applications

Flat flex conveyor belts are mainly used in for quick-frozen food,
fried food, sugar machine, chocolate coating with a variety of
bread and pastry food baking conveyor line. Flat flex conveyor
belts are used in the food industry for the production of the
following products: small dessert, fish products, pizza,
vegetables, bread, flour, cakes, meat, candy, potatoes, biscuits,
chocolate, nuts and fruit.

flat flex conveyor mesh belt for pizza

flat flex conveyor mesh belt for food baking conveyor line
