304 Stainless Steel Wire Mesh Chain Link Conveyor Belt For Chocolate Machine

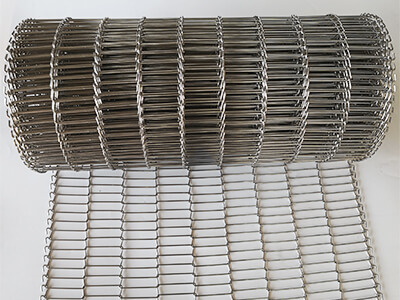

Flat Flex Conveyor Belts are used in many industries. The belts have a lightweight single-layer construction and are positively driven by sprockets. Flat Flex Conveyor Belts are made of stainless steel wire of spring wire. Wire diameters vary from 0.8 to 3.0 mm. Pitches from 4 mm until 2000 mm, and belt widths from 10 mm until 3 meters, also we can make all the (non-standard) dimensions too.

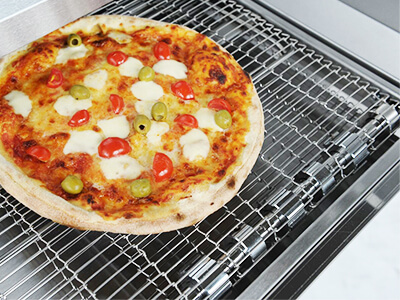

The Flat Flex Conveyor Belts have an open structure (70 – 86 % open) and are frequently used in cooling, baking, drying, heating, decorating, battering and packing machines for light products. The Flat Flex Conveyor Belts can be made for straight conveyors and for curve conveyors.

We can not only provide right belts, but also provide matching sprockets and other components.

Flat Flex Conveyor Belts advantages:

• The largest proportion of open-mesh area available up to 86%

• • Easy to clean, clean-in-place design
  • No-slip, positive drive
  • Very low belt mass
  • Smallest diameter end rolls and drive rolls
  • Positive driven for accurate tracking

  • Curved rod network belt to suit different machines














  Methods of endlessly connecting flat flex conveyor belts:

  1. Flat Flex Conveyor Belt Endless Connection with Steel Tube

  2. Flat Flex Conveyor Belt Joining with Full Strand Weaving



So far, the total area of our main plant and branch plant has reached 10000m2.Our conveying equipment and accessories are widely used in food processing, leisure food, baking, heat treatment, forging, casting, ceramics, glass, automobile and other industries.

We are willing to develop together with you, welcome your inquire.
